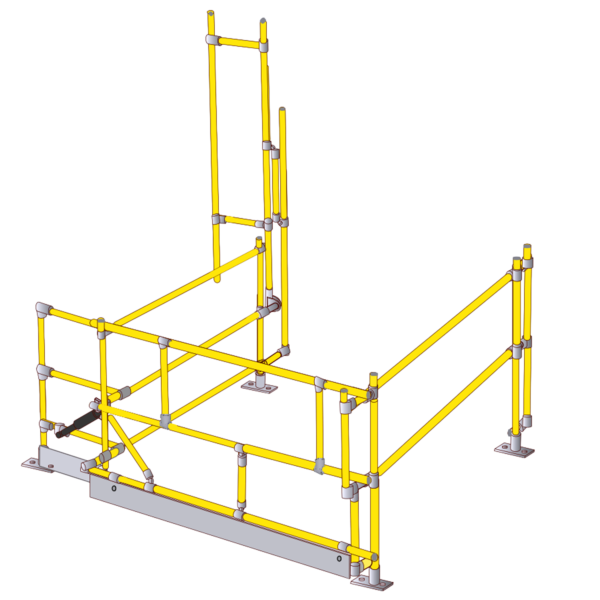

MezzBarriers Hi-Gate Low Headroom Safety Pallet Gate – Custom Built
MEZ-HI-GATE-LOW-PG
Mezz Barrier Hi-Gate low headroom pallet safety gate with scissor-action mechanism for restricted headroom loading areas. Bespoke sizes up to 2m wide and 4m deep, anti-slam damper and unlimited load height.
Price on request
Description
Why Choose The Mezz Barrier Hi-Gate Low Headroom?
The Mezz Barrier Hi-Gate Low Headroom Universal Safety Pallet Gate is an innovative, custom-built safety solution designed specifically for mezzanine floors, hoist openings, scaffold platforms, Teagle openings, and elevated loading areas where conventional up-and-over pallet gates cannot be installed. Engineered to provide complete fall protection while allowing the safe transfer of palletised goods, the Hi-Gate is the ideal choice for facilities with limited overhead clearance or restricted operating space.
Unlike traditional pivot-over pallet gates, the Hi-Gate utilises an advanced scissor-action lifting mechanism that raises the gate vertically to one side. This unique design allows the gate to operate efficiently in low headroom environments while providing unlimited load height, making it suitable for exceptionally tall pallets, suspended loads, machinery, and oversized materials.
Every Hi-Gate is manufactured to order, allowing dimensions and configurations to be tailored precisely to your working environment for maximum safety, efficiency, and operational flexibility.
Designed for Low Headroom & Unlimited Load Height
The Hi-Gate has been developed specifically for installations where overhead clearance prevents the use of conventional pallet gates.
Its innovative lifting mechanism offers several advantages:
- Ideal for restricted headroom applications
- Unlimited load height capability
- Suitable for oversized pallets and suspended loads
- Minimal operating depth required
- Safe loading without overhead obstruction
The gate remains entirely within its operating footprint and does not project beyond the mezzanine edge in either the open or closed position, significantly reducing the risk of collisions with incoming loads.
Custom-Built to Your Exact Requirements
Every Mezz Barrier Hi-Gate is manufactured to suit your specific installation, ensuring a perfect fit and optimum operational performance.
Available bespoke options include:
- Inside widths up to 2,000 mm
- Inside depths up to 4,000 mm
- Left or right-hand operating mechanism
- Mechanism positioned in any corner
- Asymmetric edge gate configurations
- Teagle opening and hoist runway versions
- Doorway adaptations with pass-through tube extensions

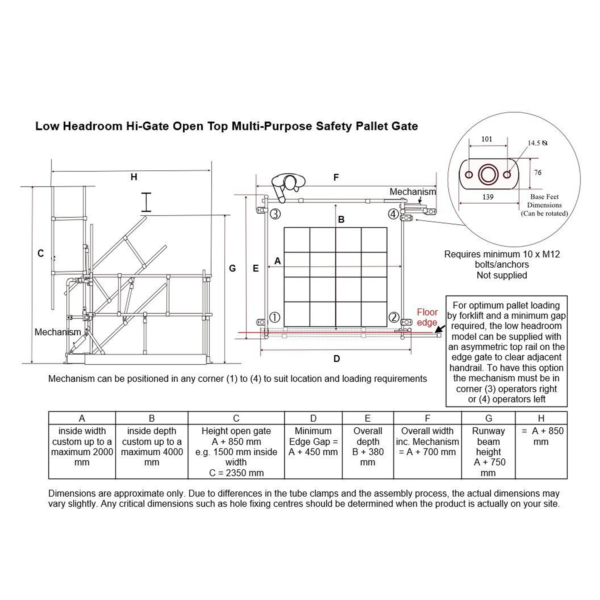

Approval drawings are supplied for all bespoke models before manufacture, ensuring complete confidence prior to installation.
Heavy-Duty Construction for Industrial Environments
Designed for continuous use in demanding industrial workplaces, the Hi-Gate combines robust construction with long-term corrosion resistance.
Construction features include:
- Heavy-duty galvanised tubular steel construction
- Safety-yellow thermoplastic-coated tube option
- Hot-dip galvanised fittings to BS EN ISO 1461
- Stainless steel grub screws
- Smooth-running nylon pivot bushes
- 100 mm aluminium kick plate
- Supplied partially assembled for straightforward installation
The durable finish provides excellent protection against corrosion while maintaining high visibility for improved workplace safety.
Enhanced Operator Safety
Operator safety is at the heart of the Hi-Gate design.
Standard safety features include:
- Anti-slam damper to control gate movement
- Fully enclosed loading area during operation
- Prevents simultaneous exposure to both loading edge and pallet opening
- Smooth scissor-action mechanism
- No gate projection beyond mezzanine edge
- High-strength industrial construction
- Compatible with existing guardrail systems
These features help minimise operator risk while improving loading efficiency in busy warehouse and manufacturing environments.
Ideal Applications
The Mezz Barrier Hi-Gate is widely used throughout numerous industries, including:
- Warehouse mezzanine floors
- Distribution centres
- Manufacturing facilities
- Industrial storage platforms
- Hoist openings
- Scaffold loading platforms
- Teagle openings
- Factory loading bays
- Logistics centres
- Material handling operations
Its bespoke design makes it suitable for both new installations and retrofit safety upgrades.
Key Features
- Bespoke low headroom pallet gate
- Unlimited load height design
- Custom widths up to 2,000 mm
- Custom depths up to 4,000 mm
- Innovative scissor-action lifting mechanism
- Anti-slam damper fitted as standard
- Left or right-hand operation available
- Optional asymmetric edge gate

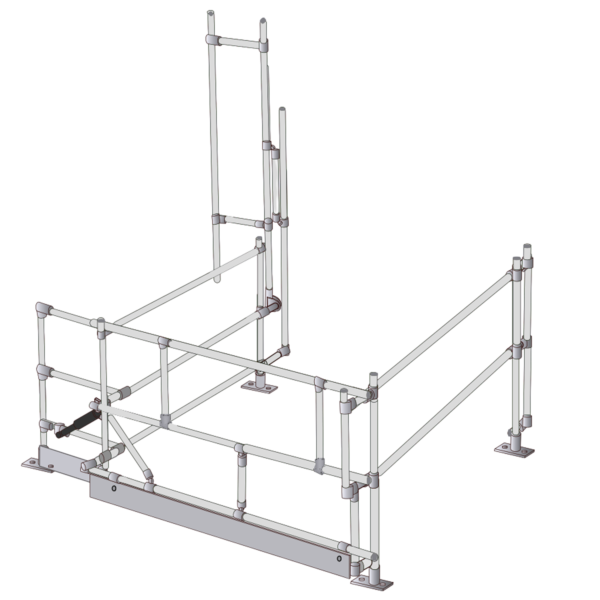

- Galvanised or thermoplastic-coated finish
- Aluminium kick plate fitted as standard
- Hot-dip galvanised fittings
- Stainless steel fixings
- Nylon pivot bushes for smooth operation
- Suitable for mezzanines, hoist openings and scaffold platforms
- Approval drawings supplied for bespoke configurations
Safety & User Instructions
- Ensure installation is completed by suitably competent personnel using appropriate M12 anchors.
- Always verify the gate is fully closed before personnel approach the loading edge.
- Never exceed the intended operating conditions or modify the gate without manufacturer approval.
- Keep all pivot points and moving components free from debris.
- Inspect the gate, pivots, dampers and fixings regularly for wear or damage.
- Operate the gate smoothly without sudden or excessive force.
- Maintain the recommended load clearance within the gate opening.
- Follow all workplace safety procedures and relevant Work at Height regulations.
- Remove the gate from service if structural damage or excessive wear is identified until repaired or replaced.
