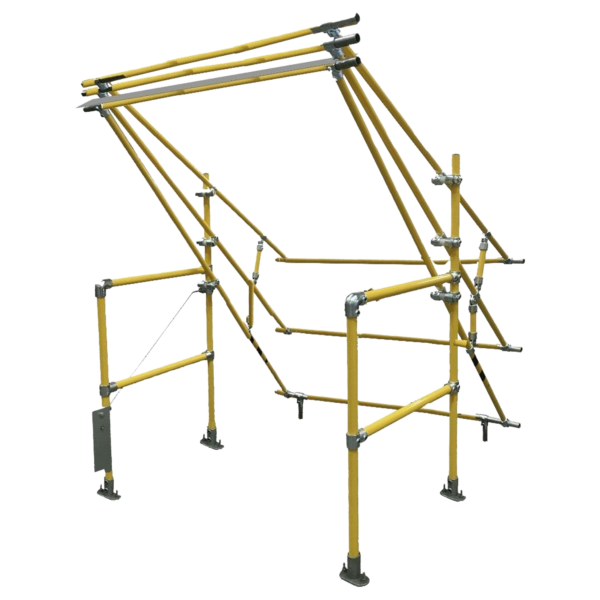

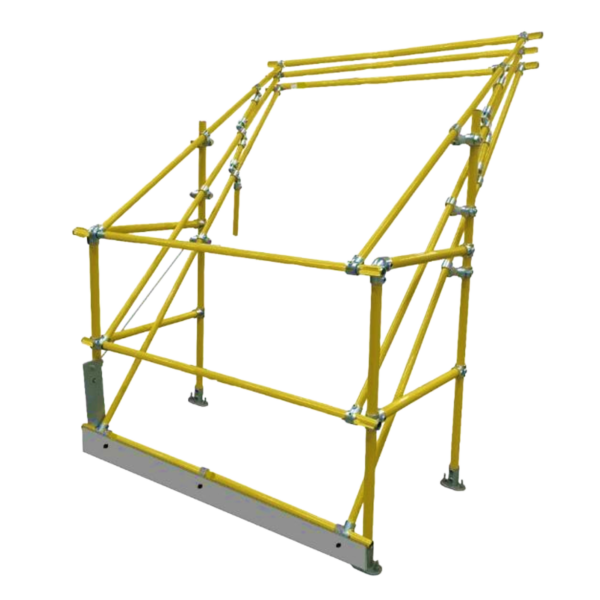

MezzBarriers Delta Low Headroom Safety Pallet Gate (Yellow)
MEZ-DELTA-LOW-YELL-PG
MezzBarriers Delta low headroom safety pallet gate for mezzanine loading areas with limited headroom. Widths 1.5–3.5m, accommodates loads up to 2000mm high, Safety Yellow thermoplastic-coated steel with galvanised fittings.
Price on request
Description
Mezz Barrier Delta Heavy-Duty Low Headroom Pallet Gate
The MezzBarriers Delta Low Headroom Safety Pallet Gate (Safety Yellow) is a heavy-duty mezzanine loading gate engineered for environments where conventional up-and-over pallet gates cannot be used due to restricted overhead clearance. Specifically designed for low headroom applications while still accommodating high pallet loads up to 2000mm, the Delta gate provides safe, efficient loading without compromising operator safety.
Its innovative dual-gate pivoting mechanism ensures the mezzanine edge remains protected throughout every loading and unloading operation. As one gate opens towards the loading side, the opposite gate automatically closes the operator side, preventing access to exposed edges and helping sites comply with modern workplace safety requirements.
Manufactured from Safety Yellow thermoplastic-coated tubular steel with galvanised steel components, the Delta gate offers outstanding durability, excellent corrosion resistance and enhanced workplace visibility. The warm-to-touch thermoplastic coating provides a comfortable finish for operators while resisting impacts, abrasion and everyday industrial wear. Stainless steel fasteners, galvanised fittings and maintenance-free nylon pivot bushes further enhance reliability while minimising maintenance requirements.
With five standard inside width options ranging from 1500mm to 3500mm, the Delta gate provides a versatile solution for handling a wide variety of pallet sizes and industrial loads. Every gate is manufactured to order and supplied part-assembled for straightforward installation.
Designed for Low Headroom Applications
The Delta gate has been specifically developed for mezzanine floors with limited overhead clearance caused by roof structures, lighting, pipework, ducting or services.
Unlike many traditional pallet gates that require significant space above the loading area, the Delta model provides clearance for pallet loads up to 2000mm high while maintaining an overall system height of just 2350mm.
This makes it an ideal choice where maximising available headroom is essential without compromising safe loading procedures.
Continuous Fall Protection
The Delta gate operates using a balanced pivoting mechanism that maintains a physical barrier at the exposed edge throughout loading operations.
When the loading-side gate is opened to receive a pallet, the operator-side gate automatically closes, preventing personnel from accessing the open edge. Once the pallet has been landed safely, the gate reverses operation, allowing the load to be retrieved while keeping the loading edge fully protected.
This fail-safe operating principle significantly reduces the risk of falls and helps maintain compliance with current mezzanine safety standards.
High-Visibility Safety Yellow Construction
Built for demanding industrial environments, the Delta gate combines Safety Yellow thermoplastic-coated tubular steel with galvanised steel components to provide exceptional durability, corrosion resistance and operator visibility.
Key construction features include:
- Safety Yellow thermoplastic-coated tubular steel framework
- Hot-dip galvanised fittings for corrosion resistance
- Stainless steel grub screws
- Smooth, maintenance-free nylon pivot bushes
- 100mm aluminium kick plate
- Replaceable components for long service life
The high-visibility yellow finish helps improve workplace safety by making the gate easily identifiable, while the thermoplastic coating provides a warm-to-touch surface that is highly resistant to impact, chipping and abrasion.
Typical Applications
The MezzBarriers Delta gate is ideal for:
- Warehouse mezzanine floors
- Distribution centres
- Manufacturing facilities
- Industrial storage platforms
- Logistics operations
- Production facilities
- Goods-in and dispatch areas
- Raised loading platforms
- Materials handling systems
- Industrial maintenance platforms
Technical Specifications
The Delta Low Headroom Safety Pallet Gate (yellow) is available in the following inside widths:
Available Inside Widths
- 1500 mm
- 2000 mm
- 2500 mm
- 3000 mm
- 3500 mm

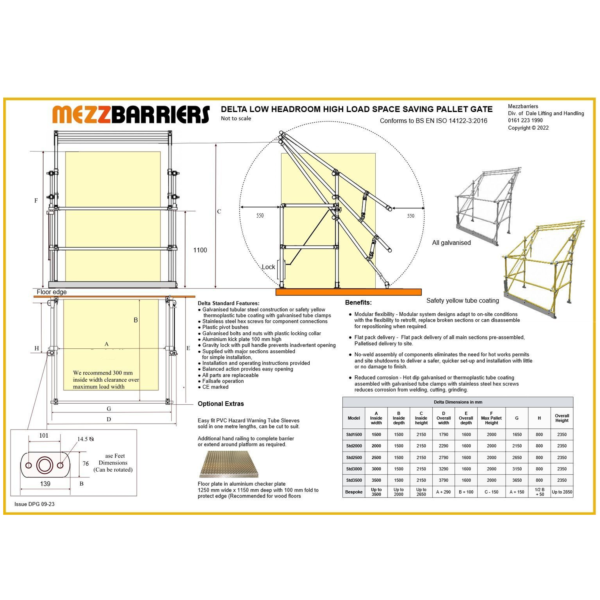

Dimensions
- Inside Width: 1500 / 2000 / 2500 / 3000 / 3500 mm
- Overall Width: Inside Width + 250 mm
- Inside Depth: 1500 mm
- Overall Depth: 1600 mm
- Side Frame Depth: 750 mm
- Maximum Load Height: 2000 mm
- Overall System Height: 2350 mm
- Handrail Height: 1100 mm
Construction
- Safety Yellow thermoplastic-coated tubular steel framework
- Hot-dip galvanised steel fittings
- Stainless steel grub screws
- Nylon pivot bushes
- Aluminium kick plate (100 mm)
Installation
- Supplied part-assembled
- Bolt-down installation
- Final fixing positions should be confirmed on site
Technical information
| Width (mm) | 1500, 2000, 2500, 3000, 3500 |
|---|---|
| Product Type | Pallet Gate |
Key Features
- Designed specifically for low headroom mezzanine loading areas
- Safely accommodates pallet loads up to 2000mm high
- Overall system height of only 2350mm
- Dual-gate pivoting mechanism provides continuous edge protection
- Prevents falls from exposed mezzanine edges during loading
- Safety Yellow thermoplastic-coated tubular steel construction
- Warm-to-touch, high-visibility finish
- Galvanised steel fittings for superior corrosion resistance
- Stainless steel fasteners throughout
- Maintenance-free nylon pivot bushes for smooth operation
- 100mm aluminium kick plate fitted as standard
- Five standard inside width options from 1500mm to 3500mm
- Suitable for heavy industrial environments
- Part-assembled for faster installation
- Replaceable components for long service life
- Manufactured to order
- Typical lead time: 2–3 weeks
Safety & User Instructions
- Ensure the gate is installed securely using suitable fixings for the supporting structure.
- Always operate the gate fully through its intended movement before loading or unloading.
- Never leave both sides of the gate open simultaneously.
- Do not exceed the recommended maximum load height of 2000mm.
- Keep personnel clear while loads are being transferred.
- Inspect pivot points, fixings and moving components regularly for wear or damage.
- Replace damaged components immediately using approved replacement parts.
- Only trained personnel should operate the pallet gate.
- Follow all workplace safety procedures and mezzanine loading regulations.
