MezzBarriers Gamma Extra Wide Safety Pallet Gate (Safety Yellow)
MEZ-GAMMA-EXWIDE-YELL-PG
MezzBarriers Gamma extra wide safety pallet gate for safe handling of wide pallets and oversized loads. Available in widths from 2.0–3.5m with balanced single-person operation, galvanised components, CE marking and BS EN ISO 14122-3:2016 compliance.
Price on request
Description

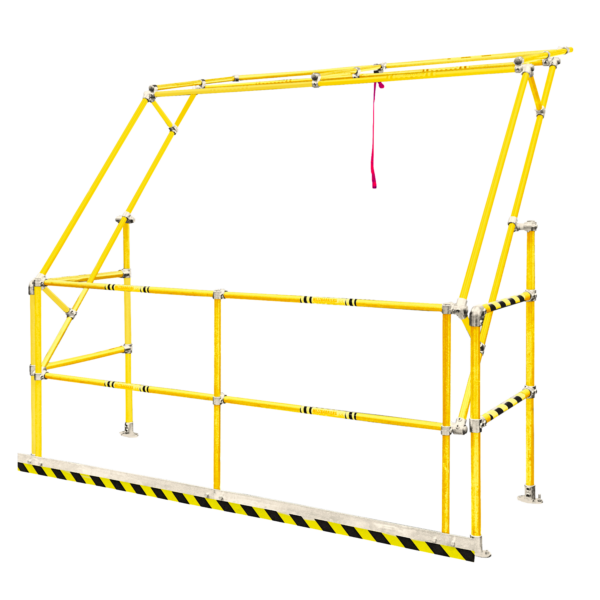

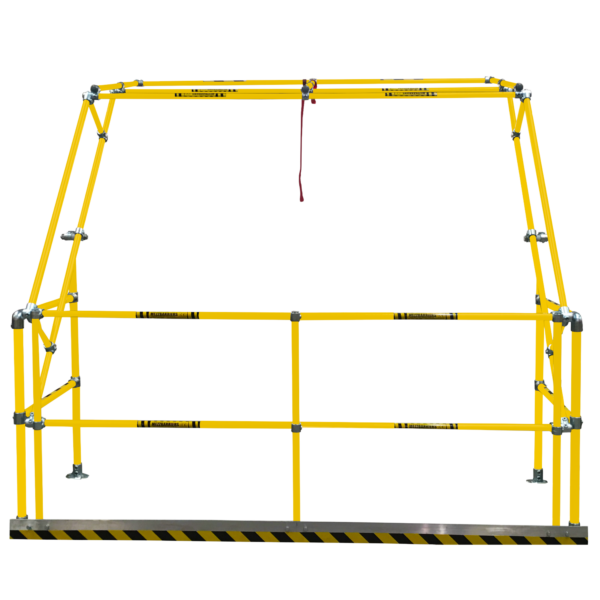

MezzBarriers Gamma Extra Wide Safety Pallet Gate – Safe Mezzanine Loading for Wide & Oversized Pallet Handling
The MezzBarriers Gamma Extra Wide Safety Pallet Gate is a robust, UK-manufactured mezzanine safety system engineered specifically for facilities handling wide pallets, oversized loads, stillages, and bulky materials. Designed to provide continuous edge protection during loading and unloading operations, the Gamma gate ensures operators remain safely separated from open mezzanine edges while allowing efficient pallet transfer between floor levels.
Ideal for warehouses, manufacturing plants, distribution centres, logistics facilities, and industrial storage environments, the Gamma Extra Wide model is available in four fixed internal widths of 2.0m, 2.5m, 3.0m, and 3.5m, making it the perfect solution where standard pallet gates cannot accommodate larger loads.
Manufactured using Safety Yellow thermoplastic-coated steel tubing, galvanised fittings, stainless steel fixings, and an aluminium kick plate, the Gamma gate delivers exceptional durability, corrosion resistance, and long-term reliability in demanding industrial environments. Its balanced mechanical design allows smooth, effortless operation by a single user while maintaining full fall protection throughout every loading cycle.
Designed for Wide Pallets & Oversized Industrial Loads
Unlike conventional mezzanine pallet gates, the Gamma Extra Wide has been developed specifically for operations moving large or unusually wide loads.
Typical applications include:
- Wide pallet handling
- Oversized cartons
- Stillages and cages
- Multi-stacked pallet loads
- Industrial components
- Engineering assemblies
- Warehouse stock replenishment
- Manufacturing material handling
With a generous 1800mm load clearance height, increasing to approximately 2000mm depending on pallet position, the gate easily accommodates a broad range of industrial loads.
Continuous Mezzanine Edge Protection
Safety remains the primary function of the Gamma pallet gate.
Its dual-gate counterbalanced mechanism ensures that at no point is the mezzanine edge left exposed. As one side opens, the opposite side automatically closes, maintaining continuous protection for warehouse personnel throughout loading and unloading operations.
This proven design helps:
- Prevent falls from height
- Improve operator safety
- Reduce workplace risk
- Maintain safe working procedures
- Support compliance with current health and safety legislation
The Gamma gate is fully compliant with BS EN ISO 14122-3:2016 for permanent means of access to machinery and elevated work areas.
Built for Demanding Industrial Environments
Every Gamma Extra Wide Safety Pallet Gate is manufactured using premium industrial-grade materials designed for long service life with minimal maintenance.
Construction features include:
- Safety Yellow thermoplastic-coated steel tubing
- Hot-dip galvanised tube clamps
- Stainless steel grub screws
- Nylon pivot bushes
- Lightweight 6063 T6 aluminium kick plate
- Corrosion-resistant construction
- Replaceable wear components
- CE marked design
These high-quality materials ensure dependable performance in busy warehouses and production facilities where pallet handling takes place every day.
Fast Installation & Easy Operation
The Gamma gate is designed for quick installation with minimal disruption to site operations.
Key installation benefits include:
- Delivered part-assembled
- Free-standing bolt-down installation
- No welding or hot works required
- No major shutdowns during installation
- Smooth balanced operation
- Easy single-person use
- Low maintenance design
The carefully balanced mechanism allows operators to open and close the gate with minimal effort, improving workflow while maintaining the highest safety standards.
Typical Applications
The MezzBarriers Gamma Extra Wide Safety Pallet Gate is ideal for:
- Warehouses
- Distribution centres
- Manufacturing facilities
- Industrial storage areas
- Logistics operations
- Mezzanine loading bays
- Production plants
- Engineering workshops
- Packaging facilities
- Commercial storage units
It is particularly suited to businesses regularly handling large, bulky, or non-standard palletised loads.
Dimensions
- Available Widths (Fixed Options) Inside width: 2000 / 2500 / 3000 / 3500 mm
- Overall width: Inside width + 290 mm
- Inside depth: 1500 mm
- Overall depth: 1700 mm
- Side frame depth: 800 mm
- Load clearance height: 1800 mm (up to 2000 mm depending on pallet position)
- Overall height: 2400 mm
- Handrail height: 1100 mm
Key Features
- Working widths of 2.0m, 2.5m, 3.0m and 3.5m
- Designed for wide pallets and oversized loads
- Double-gate counterbalanced safety system
- Continuous mezzanine edge protection
- Fully compliant with BS EN ISO 14122-3:2016
- High-visibility Safety Yellow thermoplastic-coated finish
- Galvanised steel tube clamps for corrosion resistance
- Stainless steel fixings and nylon pivot bushes
- Lightweight 6063 T6 aluminium kick plate
- Load clearance height of 1800mm (up to approximately 2000mm depending on pallet position)
- CE marked
- Replaceable components for extended service life
- Smooth single-person operation
- Free-standing bolt-down installation
- Delivered part-assembled for rapid installation
- Manufactured in the UK
Safety & User Instructions
- Always ensure the pallet gate is securely installed to a suitable structural floor before use.
- Never exceed the maximum load dimensions recommended for the selected gate size.
- Operate the gate smoothly and avoid sudden or forced movement.
- Ensure only one side of the gate is open during loading or unloading operations.
- Keep the loading area clear of personnel while pallets are being raised or lowered.
- Inspect pivot bushes, fixings, aluminium kick plate, and moving components regularly for wear or damage.
- Replace worn or damaged components using approved replacement parts.
- Never modify the pallet gate without manufacturer approval.
- Follow all workplace safety procedures and applicable Work at Height Regulations when operating mezzanine loading systems.
