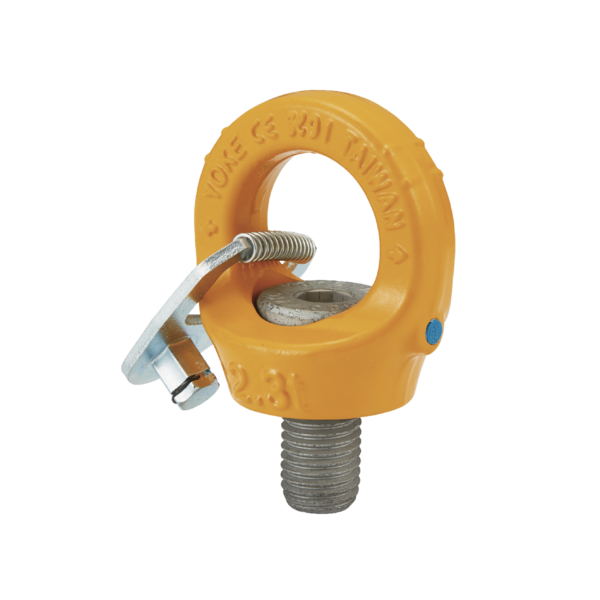

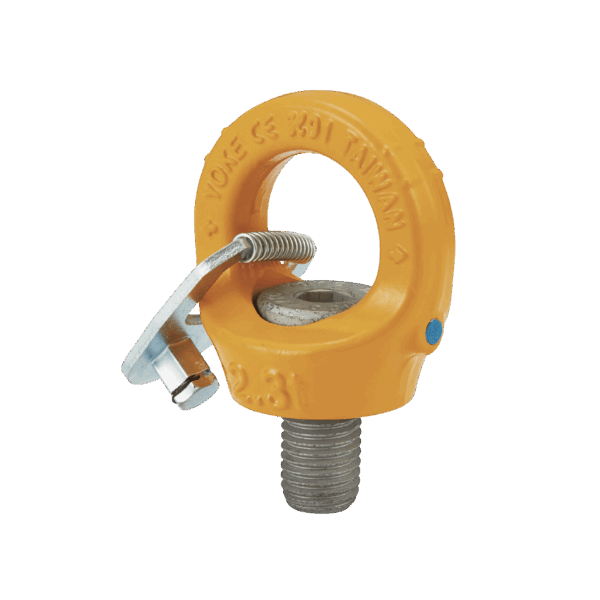

Yoke Key Eye Anchor Point – UNC Thread -1t-32t WLL

Description

The Yoke Key Eye Anchor Point – UNC Thread is a premium industrial lifting point designed to provide a secure and reliable attachment solution for machinery, fabrications, equipment and heavy industrial applications where UNC threaded mounting is required.

Engineered for demanding lifting environments, the Key Eye Anchor Point features a rotating lifting eye that provides continuous 360° movement, allowing the eye to naturally align with the direction of pull. This reduces unwanted side loading forces, improves load positioning and enhances safety during lifting operations.

Manufactured from forged alloy steel and quenched and tempered for maximum strength and durability, each anchor point delivers dependable performance in critical lifting applications.

Available with UNC threaded mounting options from 5/16 UNC to 2 UNC, and working load limits from 660kg up to 12 tonnes, the Yoke Key Eye Anchor Point provides a versatile lifting solution for machinery manufacturers, engineers, fabricators and maintenance professionals.

Each lifting point undergoes rigorous quality control, including 100% Magnaflux crack detection on all load-bearing components. Individual forged parts and cap screws are fully traceable to original test certification, supporting inspection procedures and lifting equipment management.

Full 360° Rotation for Flexible Lifting

The Yoke Key Eye Anchor Point features a rotating lifting eye designed to move through 360 degrees and adjust naturally in the direction of loading.

Advantages include:

Allows lifting from multiple directions
Reduces twisting forces
Minimises side loading
Improves load stability
Enhances operator safety
Provides greater flexibility during lifting operations

The articulated design makes this lifting point particularly suitable for applications where load direction changes during movement or installation.

High-Strength Forged Alloy Steel Construction

Manufactured from high-quality forged alloy steel, every Key Eye Anchor Point is quenched and tempered to achieve outstanding strength, toughness and durability.

Manufacturing quality features include:

Forged alloy steel construction
Heat treated for maximum strength
100% Magnaflux crack detection on load-rated parts
Fully traceable forged components
Individually traceable cap screw
Certification available for inspection records
Durable YOKE protective finish

These features ensure reliable operation in demanding industrial lifting environments.

Tested for Safety and Reliability

Each Yoke Key Eye Anchor Point is manufactured and tested to provide confidence during critical lifting applications.

Testing includes:

Proof tested to 2.5 x Working Load Limit
Fatigue rated to 20,000 cycles at 1.5 x Working Load Limit
Tested in accordance with EN 1677-1
Certified by DGUV GS-OA 15-04
Designed to meet or exceed ASME B30.26 requirements

The combination of testing, certification and traceability ensures dependable performance for professional lifting operations.

Simple UNC Thread Installation

The Yoke Key Eye Anchor Point – UNC Thread has been designed for quick and simple installation.

Only a correctly specified UNC tapped hole is required, allowing the lifting point to be securely fitted using the recommended tightening torque.

Installation benefits include:

Fast assembly
No welding required
Easy replacement or relocation
Secure threaded connection
Suitable for permanent or temporary lifting points

Correct installation ensures the lifting eye can rotate freely and align with the direction of applied load.

Available Working Load Limits

The Yoke Key Eye Anchor Point – UNC Thread is available in the following configurations:

Item Number Working Load Limit UNC Thread Size
8-292K-003 660kg 5/16 UNC
8-292K-004 880kg 3/8 UNC
8-292K-007 1.65 tonnes 1/2 UNC
8-292K-015 3.3 tonnes 5/8 UNC
8-292K-023 5.06 tonnes 3/4 UNC
8-292K-025 5.06 tonnes 7/8 UNC
8-292K-032 7.04 tonnes 1 UNC
8-292K-045 9.9 tonnes 1 1/4 UNC
8-292K-070 15.4 tonnes 1 1/2 UNC
8-292K-090 19.8 tonnes 1 3/4 UNC
8-292K-120 26.4 tonnes 2 UNC
Typical Applications

The Yoke Key Eye Anchor Point – UNC Thread is suitable for:

Heavy machinery lifting
Industrial equipment handling
Machine tool lifting
Engineering workshops
Steel fabrication
Construction equipment
Plant maintenance
Manufacturing machinery
Heavy engineering applications
Generator and motor lifting
Pump installation
Tooling and mould handling
OEM equipment lifting points
Industrial rigging operations
Key Features
Working Load Limits from 660kg to 12 tonnes
UNC threaded lifting point versions available
Rotates through 360°
Adjustable in direction of load
Forged alloy steel construction
Quenched and tempered for maximum strength
Proof tested to 2.5 x WLL
Fatigue rated to 20,000 cycles at 1.5 x WLL
Tested to EN 1677-1
Certified by DGUV GS-OA 15-04
Meets or exceeds ASME B30.26 requirements
100% Magnaflux crack detection on load-bearing components
Fully traceable forged parts
Traceable cap screw certification
Quick installation using tapped UNC hole
Suitable for permanent or temporary lifting applications
Technical Specifications
Product

Yoke Key Eye Anchor Point – UNC Thread

Models

8-291K and 8-292K

Thread Type

UNC Thread

Working Load Limits

660kg to 12 tonnes

Thread Sizes

5/16 UNC
3/8 UNC
1/2 UNC
5/8 UNC
3/4 UNC
7/8 UNC
1 UNC
1 1/4 UNC
1 1/2 UNC
1 3/4 UNC
2 UNC

Movement

360° rotating lifting eye

Material

Forged alloy steel
Quenched and tempered

Testing

Proof tested to 2.5 x WLL
Fatigue tested to 20,000 cycles at 1.5 x WLL
EN 1677-1 tested

Certification

DGUV GS-OA 15-04 certification
ASME B30.26 compliant

Traceability

Individually traceable forged components
Traceable cap screw
Test certification available

Installation

Requires correctly specified UNC tapped hole.

Recommended tightening torque varies according to thread size.

Safety & User Instructions
Ensure the anchor point is installed into a correctly specified UNC threaded hole.
Confirm the mounting material is suitable for the applied load.
Tighten the fixing bolt to the recommended installation torque.
Always allow the lifting eye to align naturally with the direction of pull.
Never exceed the stated Working Load Limit.
Inspect the lifting point before every use for wear, damage, deformation or corrosion.
Do not use modified, damaged or worn lifting points.
Ensure all lifting equipment is inspected according to relevant lifting regulations.
Installation must be completed by competent personnel.
Replace damaged components immediately.
Only use the lifting point within its rated capacity.
