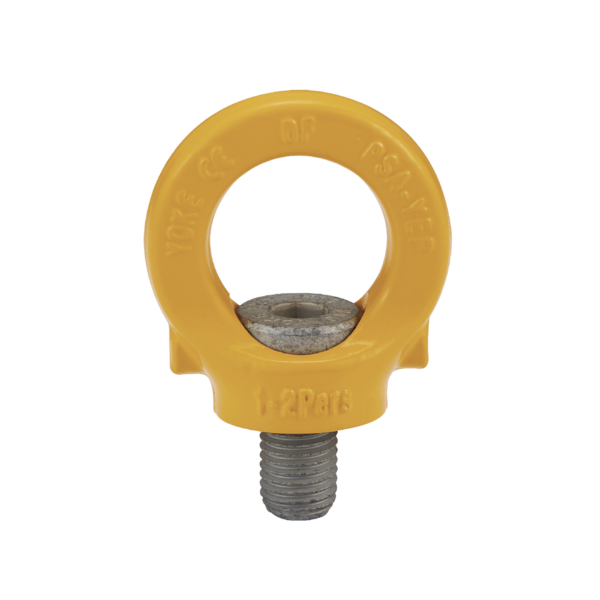

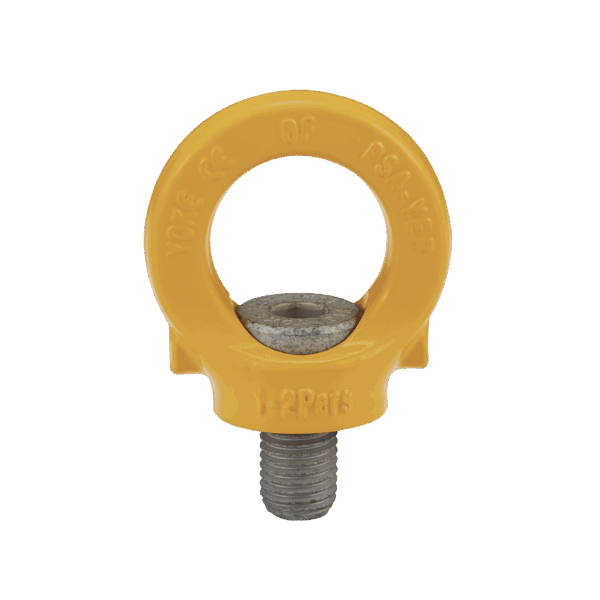

Yoke Digital PSA Fall Arrest Anchor Point – Metric Thread – 1-2 Person WLL

Description

The Yoke Digital PSA Fall Arrest Anchor Point is a high-performance personal safety anchorage system designed to provide a reliable connection point for fall arrest and personal protective equipment (PPE). Engineered for demanding working environments, this certified anchor point combines strength, durability and ease of installation with a rotating attachment eye that allows alignment with the direction of loading.

Manufactured from forged alloy steel and quenched and tempered for superior mechanical performance, the PSA-YEP anchor point is designed for permanent or temporary installation on suitable structures where secure fall protection anchorage is required.

The rotating eye provides 360° movement, allowing the anchor point to adjust naturally during use and helping to minimise unwanted loading forces. This makes it suitable for applications where workers require safe movement while connected to personal fall arrest systems.

Available in metric threaded versions from M12 to M20, the Yoke Digital PSA Fall Arrest Anchor Point is suitable for one or two-person fall protection systems depending on the selected model.

Each anchor point features 100% Magnaflux crack detection on load-bearing components, full traceability of forged parts and cap screws, and individual certification documentation for quality assurance and inspection records.

Certified Personal Fall Protection Anchor Point

The Yoke Digital PSA Fall Arrest Anchor Point is specifically designed as an anchorage point for personal protective equipment systems.

It has been tested and certified to meet recognised fall protection standards including:

Tested in accordance with EN 795
Tested in accordance with TS 16415
Certified by PSA of DGUV
Meets DIN EN 795 requirements
Meets DIN EN 50308 requirements
Meets OSHA 1926.502 requirements
Complies with DIN EN 365 requirements for the number of load-bearing persons

The anchor point is approved for use with personal fall protection equipment where a secure and certified attachment point is required.

360° Rotating Anchor Eye

The Yoke Digital PSA Fall Arrest Anchor Point features a rotating attachment eye that turns through 360 degrees, allowing the connection point to align with the direction of the applied load.

Benefits include:

Adjustable positioning in the direction of loading
Improved user mobility
Reduced twisting forces
Enhanced connection flexibility
Improved safety during fall protection applications

The rotating design allows workers to move more freely while maintaining a secure connection to their fall arrest system.

High-Strength Forged Alloy Steel Construction

Manufactured from premium forged alloy steel, each PSA-YEP anchor point is quenched and tempered to provide excellent strength, reliability and long service life.

Quality assurance features include:

Forged alloy steel construction
Quenched and tempered heat treatment
100% Magnaflux crack detection on load-bearing components
Fully traceable forged components
Traceable cap screw supplied with certification
High-visibility YOKE yellow powder-coated finish

The robust construction ensures dependable performance in demanding industrial and construction environments.

Tested for Fall Arrest Safety

Every Yoke Digital PSA Fall Arrest Anchor Point undergoes extensive testing to ensure reliability in personal fall protection applications.

Testing includes:

22.2 kN per person load testing
Dynamic fall testing using 100kg and 150kg test masses
Testing according to European fall protection requirements
Individual product certification and traceability

The anchor point meets the requirements of the German BG BAU (Employer’s Insurance Association of the Building Industry), providing confidence for professional safety applications.

Simple Metric Thread Installation

The PSA-YEP Fall Arrest Anchor Point is designed for straightforward installation using a suitable metric threaded mounting point.

Available thread options include:

M12 x 1.75
M16 x 2.0
M20 x 2.5

Installation requires:

Correctly specified metric threaded hole
Suitable structural mounting material
Tightening to the recommended installation torque
Inspection by competent personnel before use
Available Working Load Limits / Person Ratings

The Yoke Digital PSA Fall Arrest Anchor Point is available in the following configurations:

Item Number Person Rating Thread Size Torque
8-281-007 1 Person M12 x 1.75 10 Nm
8-281-015 1-2 Persons M16 x 2.0 30 Nm
8-281-023 1-2 Persons M20 x 2.5 70 Nm
Typical Applications

The Yoke Digital PSA Fall Arrest Anchor Point is suitable for:

Construction site fall protection
Industrial maintenance access
Roof safety systems
Machinery maintenance areas
Engineering facilities
Industrial platforms
Access equipment
Work-at-height applications
Building maintenance
Personal protective equipment anchorage systems
Permanent and temporary fall arrest installations
Key Features
Certified personal protective equipment anchor point
Suitable for 1-2 person fall arrest systems
Metric threaded versions available
Rotates through 360°
Aligns with direction of loading
Forged alloy steel construction
Quenched and tempered for maximum strength
Tested to EN 795 and TS 16415
Certified by PSA of DGUV
Passed 22.2 kN/person load testing
Passed dynamic fall testing with 100kg and 150kg test masses
100% Magnaflux crack detection on load-bearing parts
Individually traceable forged components
Traceable cap screw certification
High-visibility YOKE yellow powder coating
Meets DIN EN 795, DIN EN 50308 and OSHA 1926.502 requirements
Approved for personal protective equipment anchorage applications
Technical Specifications
Product

Yoke Digital PSA Fall Arrest Anchor Point – Metric Thread

Model

PSA-YEP

Item Number

8-281

Thread Sizes

M12 x 1.75
M16 x 2.0
M20 x 2.5

Person Rating

1 Person
1-2 Persons

Movement

360° rotating anchor eye

Material

Forged alloy steel
Quenched and tempered

Testing

22.2 kN/person load tested
Dynamic fall tested using 100kg and 150kg test masses
EN 795 tested
TS 16415 tested

Certifications & Standards

EN 795
TS 16415
DIN EN 365
DIN EN 50308
OSHA 1926.502
PSA of DGUV certification
BG BAU requirements

Finish

YOKE yellow powder coating for high visibility

Traceability

Individually traceable forged components
Traceable cap screw
Test certification available

Safety & User Instructions
Ensure the anchor point is installed into a suitable structurally approved mounting location.
Use only the correct metric threaded connection specified for the selected model.
Tighten the anchor point to the recommended installation torque.
Always inspect the anchor point before use for damage, wear, deformation or corrosion.
Do not exceed the approved number of users for the selected model.
Only use the anchor point with compatible personal protective equipment systems.
Ensure all fall protection equipment is inspected and maintained according to applicable regulations.
Installation and inspection must only be carried out by competent personnel.
Replace any damaged or worn components immediately.
Do not use the anchor point for lifting loads; this product is designed specifically as a personal protective equipment anchorage point.
